Unik Metals is a reputable manufacturer and supplier of flanges in multiple materials and various grades. We also specialize in supplying custom-made, client-specific requirements of flanges.

The types of flanges we supply

Weld-Neck Flange- This type of flange has a welded neck at the end of the pipe. Used for high-pressure applications to reduce stress concentration. These flanges are usually made of forging and are usually butt-welded to the pipe. Welded neck flanges have a longer life than slip-on flanges under load.
Lap Joint Flanges- (LJ Flanges) are used in pipelines with lap pipes or wrap stubs. The lap joint flange consists of two components, a stub end, and a loose support flange. The butt end is welded to the pipe and the support flange is free to move on the pipe. Use lap flanges if you need to disassemble frequently and space is limited.

Enquire now

Slipon Flange- SlipOn flanges are popular with many clients because they are generally cheaper than weld neck flanges. These pipe flanges slide on the pipe. It is made with an inner diameter slightly larger than the outer diameter of the pipe. These add-on parts are connected to the pipe using fillet welds at the top and bottom of the flange.

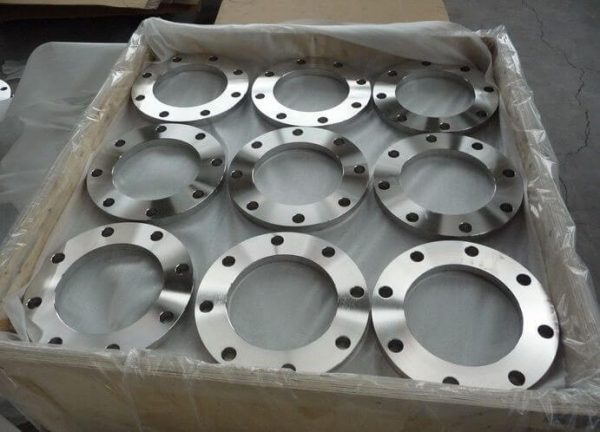

Welded Socket Flange- The welded socket flange has an internal socket into which the pipe fits. Fillet welding is done from the outside of the pipe. Socket weld flanges are similar to slip-on flanges, but with bores and counterbores. The countersunk hole is slightly larger than the outer diameter. The diameter of the smaller hole in the matching pipe corresponds to the ID so that the pipe can be pushed into the flange as well as the coupling flange.
Blind Flange- A blind flange is a round plate with all relevant screw holes and no center hole. Because of this property, this flange is used to close the ends of the piping system and the openings in the pressure vessel. Blind Flange is like a round plate without a center stop, but with all the correct screw holes. This blind flange is available in a variety of sizes and materials and is used to mold the ends of pipes, valves, or device nozzles. These may be custom-made or machined to accommodate shrinking nominal size pipes. Blind flanges are commonly used in the petrochemical industry, pipeline construction, public services, and water services. Blind pipe flanges are often used in high-pressure applications.
Threaded Flange- Threaded flanges, also known as threads, have threads in the flange holes and are threaded to fit the pipe with the corresponding male thread. This flange is used in a variety of industrial applications. This type of joint connection is quick and easy, but not suitable for high pressure and high-temperature applications. Threaded flanges are primarily used in utilities such as air and water. Threaded flanges are similar to slip-on flanges, but the holes have threads. Its main advantage is that it can be assembled without welding.

Other Types of Flanges we supply

Plate Flanges	Ring Type Joint Flanges (RTJ)
Blind Flanges	Orifice Flanges
Slip On Flanges	Welding Neck Flanges
Spectacle Blind Flanges	Long Weld Neck Flanges
Threaded Flanges	Anchor Flanges
Spades & Ring Spacers	Lap Joint Flanges
Nipoflanges	Expander Flanges
Socket Weld Flanges	High Hub Flanges
Square Flanges	Reducing Flanges

Flanges Materials and Grades

Stainless Steel Flanges: ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Alloy Steel Pipe Fittings: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex & Super Duplex Steel Flanges: ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462
Alloy Steel Flanges: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Low Temperature Carbon Steel Flanges: ASTM A420 WPL3, A420 WPL6
Carbon Steel Flanges: ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Nickel Alloy Flanges: ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
